Cantilever Rack Arm

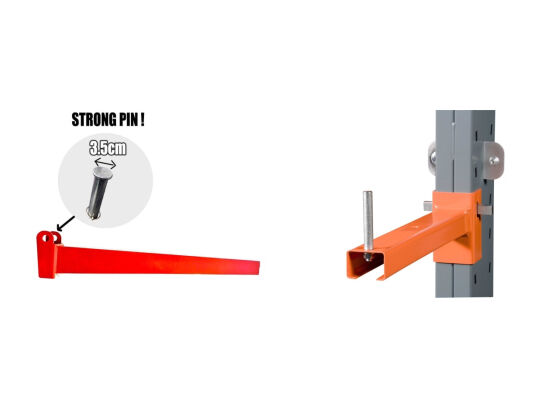

Cantilever rack arm is the horizontal beams that support the load when stored. They can be set at different angles depending on storage requirements.
Cantilever racking is a specific type of warehouse storage system which is a combination of vertical column, base, arms and horizontal and/or cross bracing. The bracing is used to join two or more cantilever bays together. They are often used in lumber yards, woodworking shops, and plumbing supply warehouses.

Cantilever rack advantages for storing various types of bulky over-sized long loads such as timber, plasterboard, steel trusses & piping, PVC carpet.











Features

· Provide flexible storage and easy access to your non-pallet-sized material such as lumber, pipe, tubing, steel bars and furniture.

· Cantilever rack is a freestanding storage unit with horizontal load carrying arms extending outward from a single vertical column.

· The absence of a front column makes cantilever rack faster and easier to load and unload than selective pallet rack, lowering your handling time and costs.

· Available in single and double-sided configurations, cantilever rack is made of four basic components: towers, bases, arms and brace sets. Cantilever towers, also known as cantilever uprights, are steel columns, pre-punched to accommodate the cantilever arms at multiple storage heights.

· Cantilever bases are bolted or welded to the towers based on load requirements. Base units extend slightly beyond or equal to the length of the cantilever arms to prevent tipping





Design

Cantilever rack arm is designed for the safe and organized storage of long and heavy loads - ideal for timber or metal storage. Our cantilever rack systems are an effective and efficient alternative to conventional lighter weight storage solutions.

· Racks designed specifically to suit your needs

· Rack heights of up to 10m are available

· Loads of up to 5 tonnes per arm can be carried

· Cantilever racks can be painted in a variety of colors and can be galvanized for external applications

Side view of cantilever rack arm
