H Beam Cantilever Rack
Welfor H beam cantilever rack offer the strength, durability and layout to store products of practically any dimension or weight. They’re particularly ideal for materials that are wide or bulky, and thus difficult to store on traditional pallet racks. And because we use structural steel, our designs can easily accommodate numerous adjustable arms to maximize your floor space and can be engineered to handle virtually any load. H beam cantilever rack is what you need for handling medium- to extra heavy-duty loads. Ideal for storing short, long or awkwardly-shaped items, our cantilever racking features a special arm system designed for easy front loading without obstruction. Structural steel components guarantee superior strength. Punched holes run the full height of each column upright, providing excellent adaptability and versatility for all of your storage requirements. Built for the toughest industrial applications, all connections use high-strength structural grade bolts.
Welfor H beam cantilever rack can function as the building blocks of our T-sheds, L-sheds and drive-thru buildings or as a stand-alone multi-level, high-density storage system for long-length materials. It’s the most efficient and affordable way to store lumber, engineered wood products, rebar, metal roofing and pipe. It’s so rugged you can use it indoors or out. Whether used as a stand-alone storage unit or as support for the roof of a shed or building, it’s economical and versatile.
Features
· Constructed of structural steel I-beams · Double- and single-sided configurations available · Different column and arm sizes available to suit various load requirements
· 3, 4, or 5 levels of storage available
· Arms adjust vertically in 4” increments
· Bolted arm and base connections
· Installation service available nationally
Advantages
· Flexibility – The lack of front columns means no restrictions on the length of items stored. Different-length objects or oddly sized items can be placed within the same rack system
· Accessibility – Because there are no vertical obstructions at the face of the rack, loading and unloading product is quick and easy
· Adjustability – Bolted connections allow for easy adjustment of arms to accommodate a wide variety of load heights
· Modularity – Easy to add onto when needed
· Efficiency – Systems make good use of limited space and are cost effective

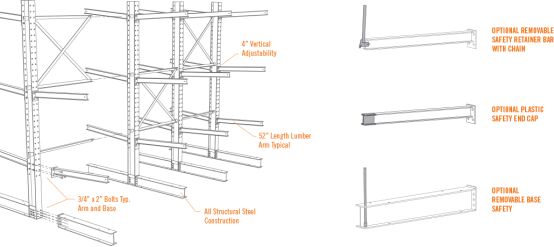

Structure

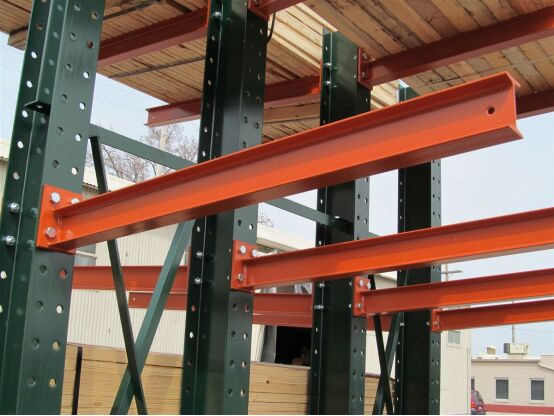

Case
