Double Deep Pallet Rack

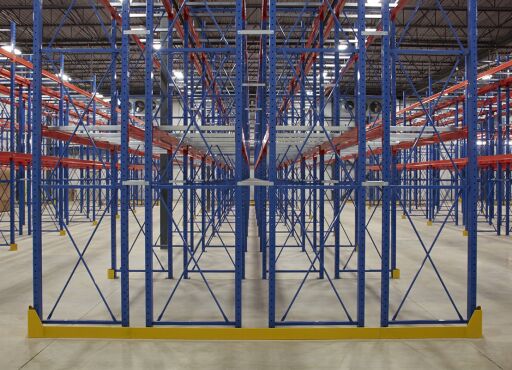

Double deep pallet rack is a high density selective racking system which is similar to the selective pallet racking but this system allows to store two pallets in depth instead of one pallet in the selective pallet racking increasing the storage capacity within the same available space taking the advantage of selectivity provided by the normal selective pallet racking which makes it a very useful racking solution.

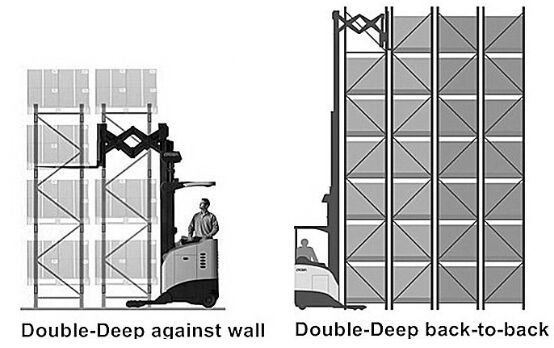

The racks are designed with nearly double the depth of the selective pallet rack to accommodate two pallets in depth which mean pallets of the same SKU must be stored in every location. A special forklift lift with a special telescopic fork or a pantograph fork attachment must be used with this system in order to reach the pallet stored in the behind. Double Deep is a LIFO system which can increase the storage capacity from 10- 15 % based on the layout design.

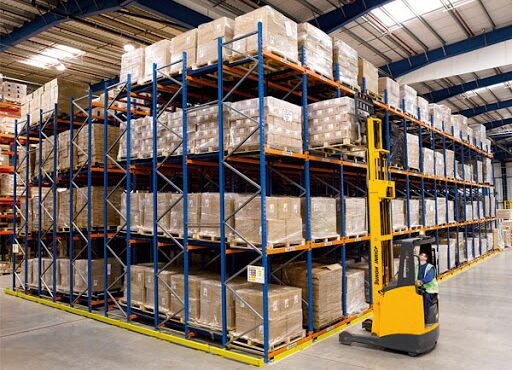

Double deep pallet rack is similar to selective racking; but pallets are stored two rows deep instead of one row. The most common forklift used for double-deep handing is a reach truck. Double deep pallet racking stores 2 pallets deep or 4 pallets deep between aisles. It delivers increased storage density when compared to wide aisle and requires specialized fork lift trucks. Double deep pallet rack simply has one row of standard pallet racking behind another. Using a deep reach lift truck, the operator places the back pallet into the system first, and then places another pallet in front of it. Selectivity is reduced by 30% over standard pallet rack, but 30% more pallets are stored for a given number of aisles. This increases productive use of floor space over a wide aisle system, offering the same sort of utilization as narrow aisle. Double deep pallet racking offers low initial cost, high productivity, and good selectivity.

Advantages

· Increased storage density compared to selective racking

· Greater utilization of available headroom

· Efficient in operation

· Relatively low cost racking system

· Load weights and height limited to forklift capacity



Specification

Load Capacity & Dimension:

Loading capacity: 500-4000kgs UDL/beam level

Height: 1,000-11,000mm

Depth: 400-1500mm

Length: 1500-3300mm

Special size are also available
