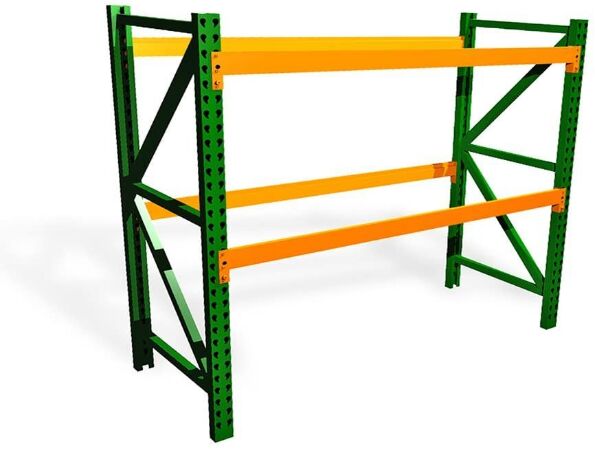

Pallet Rack Frame

Pallet rack frame feature an angle keyhole-slotted punch pattern every 3". Horizontally and diagonally braced frame creates a strong, stable upright system. Prepunched baseplates for easy anchoring. Rack Manufacturer's Institute (RMI) certified. Hot-rolled structural channel pallet rack frame are specially punched for 2" beam adjustability. Full horizontal and diagonal bracing increases frame strength. 7-ga. Baseplate welded to column disperses floor load and increases stability. Multiple anchor holes allow easy floor mounting. Structural Channel Pallet Rack Components. Multiple offset anchor holes provide flexibility in anchor placement. Footpad with nesting ridge provides easy shim nesting, and flush footpad to column base evenly disperses load weight. Boltless assembly. Closed tubular columns and braces generate greater durability against fork truck damage.

Features

· Constructed using only prime, US made high strength steel.

· Provides maximum space efficiency that's great for storage.

· Painted using environmentally safe high quality, high visibility polyurethane paint.

· Maximum craftsmanship. Tolerances within 7/1000th inch.

· Comes with everything you need for one free-standing section of pallet rack.

Advantage

· Meets RMI standards and specifications

· Holds up to 19,380 lbs

· Quality, high-strength steel construction

· Powder coating for added protection and corrosion resistance

· Fully welded upright with support bracing for added rigidity

· Teardrop punches on 2” centers for easy assembly

· Footplates can be anchored to floor through pre-punched holes

· Compatible with accessories such as wall ties and row spacers







Welfor pallet rack frame characters

· Upright frames are built from structural channel steel

· 3" uprights have 37,410 lbs. capacity; 4" columns have 56,860 lbs. capacity (based on 48" or less vertical beam spacing and other factors)

· Steel thickness, especially in corner sections, enables greater resistance to fork truck impact damage, while increasing load carrying capacity and resistance to seismic forces

· Upright frames are punched on 4" vertical centers Beam connector clips are specially punched to allow for vertical adjustability in 2" increments

· Diagonal and horizontal braces are used throughout the entire frame. Braces are 2" x 2" and 1.5"x1.5" structural angles, welded to the columns

· Footpads are made of 7-gauge steel plates, and are welded to each column, efficiently dispersing floor loads

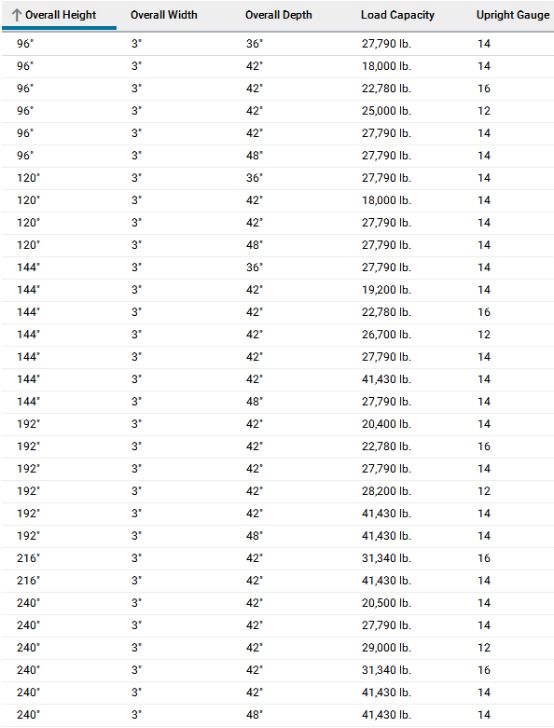

Specification chart

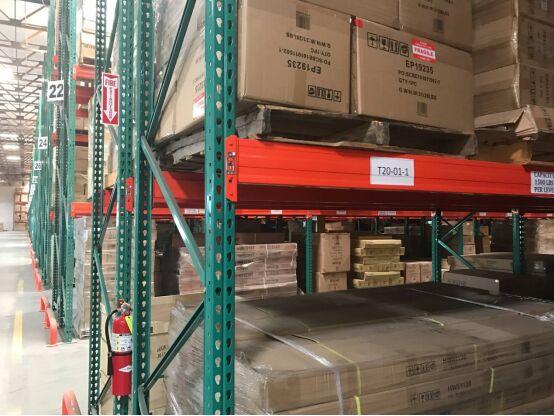

Case
