• Pallet Rack Uprights Manufacturer

Pallet Rack Uprights

Features

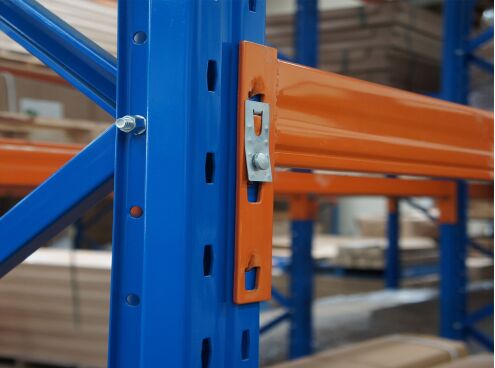

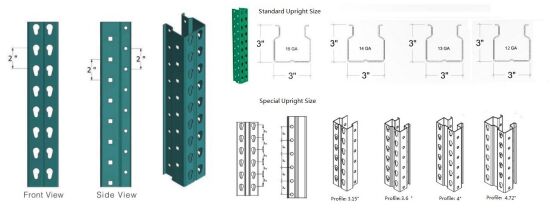

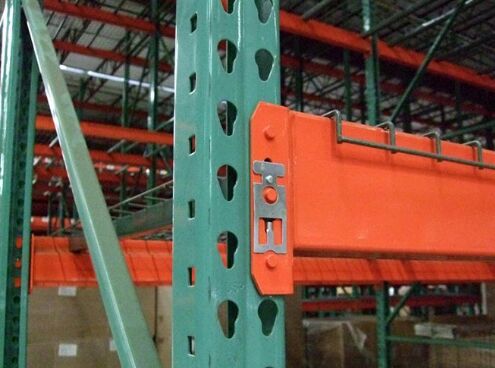

Teardrop pallet rack uprights

· Bolted and welded types available

· Easy one-step beam installation with no special tools or training required

· Beam and upright frame locking system provides exceptional protection against damage, tampering, and accidental disengagement

· Durable powder coating and baked enamel finishes ensure long life even under the most demanding conditions

Dexion style pallet rack uprights

· Individual access to all pallets to full height of warehouse

· Easy beam adjustment accommodates variable pallet heights

· Simple stock rotation achieved

· Compatible with many handling equipment types





Advantage

· Our teardrop pallet rack is compatible with most teardrop racks prevailing in North American. It can be added directly with the existing ones for expansion

· It could be designed and applied in different storage solution, such as, selective rack, push back rack, drive in rack, pallet Flow rack etc.

· Easy to assemble and install

· With a wide of racking accessories for options to make storage safer and easier

Advantage

· Easy to assemble and install in warehouse

· Flexibility for pallet load inventory management

· Maximum the warehouse space utilization and save storage cost







Bolted upright frame

Bolted frame is easy to assemble. Welfor bolted frame has variety of gauges, length and configurations. The footplate is optional. Due to the bolted character, this type of frame is more resistant to twisting, separating and axial loading.





Welded upright frame

Welded type frame is fully welded structure to shorten installation time and reduce its costs and no tools required. The anchor holes can be offset in the bottom. That is compatibility with other widely available teardrop systems. 2 inch length can be adjust in the frame and increased impact resistance.

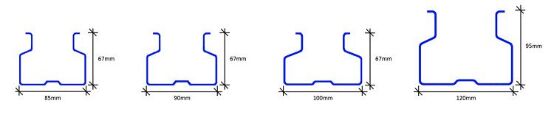

Dexion type upright frame

Welfor upright of racking is made of steel with good plasticity and toughness and with high strength material and excellent welding performance. Welfor used Q235B and Q345B steel materials. It makes racks more stable when they load the fullest load of the cargos and when they are impact by a forklift.
