Teardrop Pallet Rack

Teardrop Pallet Rack is most popular in American and Canada market. It is type of Selective Pallet Racking because of it offers tremendous selectivity. It is the most economical and efficient way to store pallets or bulk boxes and maximize valuable storage space in your warehouse. Our Teardrop pallet rack can be used for a variety of storage applications including selective pallet storage racks, narrow aisle selective racking, bulk storage, carpet storage, drum storage, cable reel storage, marine boat storage, retail racks, rack supported mezzanines and pick modules.

Features

· Mainly consist of upright frame, beam and related accessories, like upright protector, support bar, wire mesh decking and etc

· It is popular due to its slide-in teardrop shaped punched hole design, to lock the horizontal beams to the vertical uprights quickly and easy assembly

· Connection of the upright and beam is by wedging, equipped with safety pin

· Holes pitch: 50.8mm

Bolted and Welded Upright Frame

Teardrop Upright Frames are consisted of rolled uprights with horizontal and diagonal bracing, including standard footplates.

1) C type Section and Omega type Section are available

2) Frame Bolted or Welded

3) Steel thickness is 15ga, 14ga , 13ga, 12ga

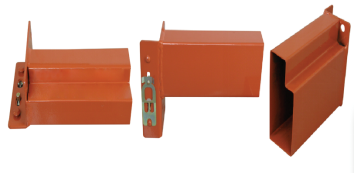

Step beam

Teardrop Step Beams are made of 14 ga, 15ga and 16 ga tubular steel and include a factory installed auto lock Safety Clip which will make a clicking sound once the beam is secure and prevents it from dislodging. Full fillet welds add to the beam's strength and durability Safety orange beams allow lift truck drivers easy recognition of the beam level at high elevations.  Safety orange color aids in safe loading and unloading of racks.

1) Spring automatic safety locks

2) Thickness of 16ga, 15ga and 14ga are available

3) Special 3 or 4 rivets beam brackets

Baseplate

Welfor have Both Standard Foot Plate for East American Market and Seismic Foot Plate for West American Market.



Row spacer

Create distance between each of your pallet rack bays. This allows you to keep all of the rows of pallet rack organized, in-line, and spaced evenly. The quantity of row spacers needed depends on the height of the uprights.

Advantage of Welfor Teardrop pallet rack

· 100% Bolted Connections Bolted frame rack is stronger than welded systems and far more cost-effective to ship. All bolts for assemble are High tension and Anti-skid bolts

· Fast and Easy Assembly Our perfectly straight posts (vs. traditional wedge-shaped) allow for quick, easy bracing connection

· Save Freight cost a lot Compared with welded type of frame , The bolted frame will reduce a lot of Freight as it could be break down to be each component to save a lot of shipping space

· Flexible Design With easy, bolted assembly and a variety of frame depth and heights up to 47 ft, we can meet both standard and custom application requirements.

· Compatible Frames Frame profile matches MOST other manufacturers’ teardrop design making it easy to add-on to existing systems

· Galvanized Steel - bracing and baseplate are constructed of galvanized steel (at no extra cost) preventing rusting and chipping like paint alternatives

· Powder Coat Paint Finish Available in numerous standard and custom colors, our powder coat process provides a uniform and long-lasting finish.

· Quick Delivery - We pride ourselves on short lead times and FAST delivery so you can get back to business!

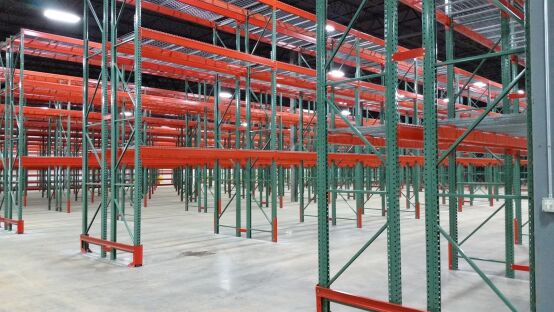

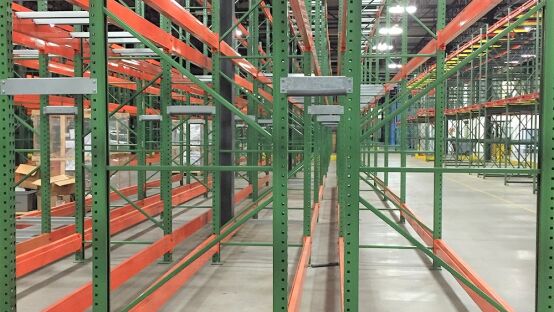

Case
