• VNA Pallet Rack Manufacturer

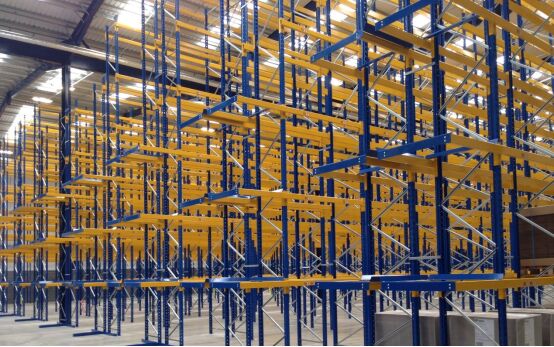

VNA Pallet Rack

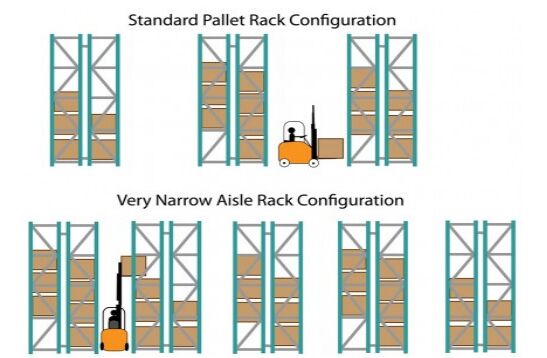

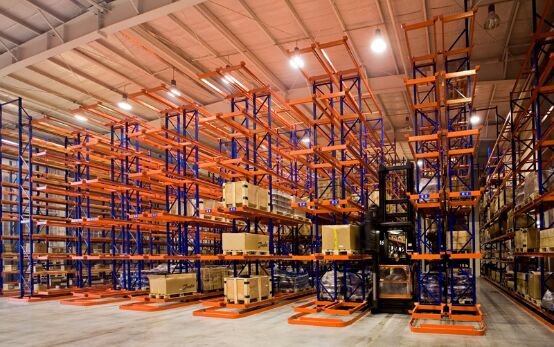

VNA pallet rack is a kind of selective pallet racking system with a very narrow aisles designed to reduce the wasted space in picking aisles by using a special VNA truck which goes through the aisles using a special guide wheels which guides the machine through its way inside the aisle thanks to the guiding system used. VNA pallet rack provides 100% pallet selectivity which help to be one of the most effective systems when a warehouse is dealing with different SKUs at the same time such as Raw Materials warehouses. In narrow aisle racking systems, the aisles are narrowed in order to use the storage volume horizontally and more efficiently.

Many factors are highly important in choice of narrow aisle racks. These are the type of material to be stacked, the type of forklift to be used, the storage speed and the importance of the storage floor. In the narrow aisle racking system, there are guide rails fixed to the sides of the aisles. Inductively system installed inside the base through the stacking method is made ready for use. VNA pallet rack has many advantages. Stacked material is the first of these to provide fast and direct access. The fact that the circulation of materials can be done quickly and used to the maximum level from the storage area is among other advantages.

Features

· Narrow aisle pallet racking is a special pallet rack with small aisle

· VNA pallet racking can save more aisle to largen storage space

· VNA pallet racking is easy install/dismantle

· VNA pallet racking can load 1-2T/pallet, each level can load 4500kgs max;

· level height can be adjusted by 75mm per pitch freely;

· VNA pallet racking suits almost all types of palletized goods

· Rapid through put and handling

· Lowest level pallets can be placed on the floor

· VNA pallet racking need special forklift match it

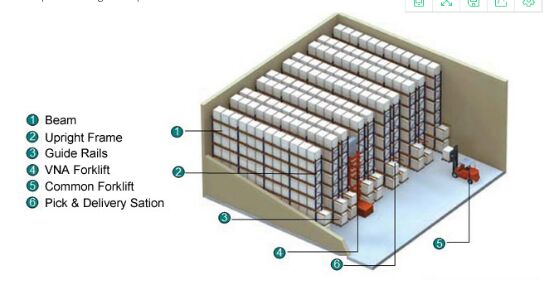

Structure

Case
